Caused by: com.vmware.vsphere.client.spbm.impl.PbmServiceUnableToConnectException: java.util.concurrent.ExecutionException: com.vmware.vim.vmomi.client.exception.Inval idSslCertificateException: Invalid SSL certificate (HTTP 526 status code)

无法连接到Profile-Driven Storage Service

虚拟机磁盘无法编辑，无法在 vSphere Client 中编辑虚拟磁盘配置，因为选项在 vCenter Server 7.0 中呈灰色显示。

• 无法在 vSphere 客户端的虚拟机设置中编辑虚拟机的磁盘

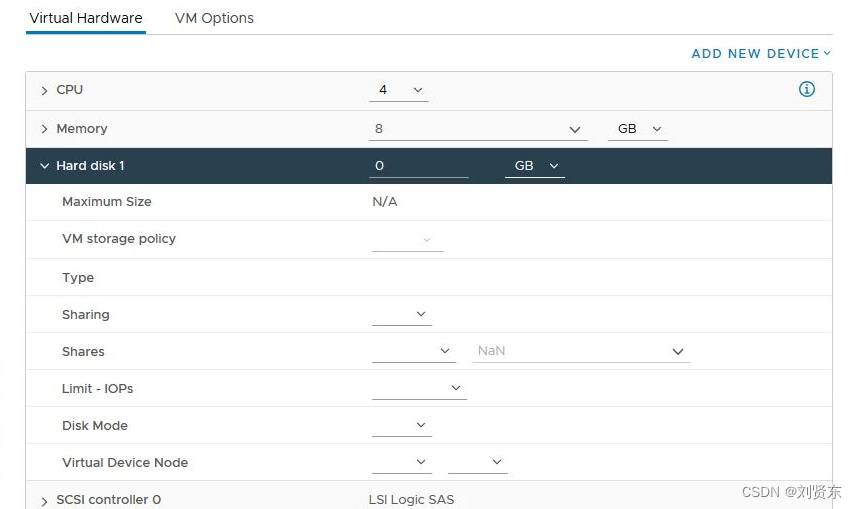

• 没有显示警报，但虚拟机配置向导中的选项呈灰色，如下所示：

• /var/log/vmware/vsphere-ui/logs/vsphere_client_virgo.log contains the following entries:

  [2021-09-20T16:09:26.596+02:00] [WARN ] data-service-pool-673        70007704 100209 200011 com.vmware.vsan.client.util.VsanInventoryHelper                   No vSAN datastore found for VM ManagedObjectReference: type = VirtualMachine, value = vm-69082, serverGuid = 1692746b-6d70-44be-b585-738e1bc486b1
  [2021-09-20T16:09:28.805+02:00] [ERROR] data-service-pool-786        70007709 100209 200011 c.v.v.c.spbm.impl.VmProfileAssignmentPropertyProviderAdapter      Failed to retrieve VmStorageRollupComplianceResult:  com.vmware.vsphere.client.spbm.impl.PbmServiceUnableToConnectException: java.util.concurrent.ExecutionException: com.vmware.vim.vmomi.client.exception.InvalidSslCertificateException: Invalid SSL certificate (HTTP 526 status code)
          at com.vmware.vsphere.client.spbm.impl.PbmServiceImpl.getServiceInstanceContent(PbmServiceImpl.java:89)
          at com.vmware.vsphere.client.spbm.impl.PbmServiceImpl.getComplianceManager(PbmServiceImpl.java:120)
          [...]
          at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
          at java.lang.Thread.run(Thread.java:748)
  Caused by: java.util.concurrent.ExecutionException: com.vmware.vim.vmomi.client.exception.InvalidSslCertificateException: Invalid SSL certificate (HTTP 526 status code)
          at com.vmware.vim.vmomi.core.impl.BlockingFuture.get(BlockingFuture.java:81)
          at com.vmware.vsphere.client.spbm.impl.PbmServiceImpl.getServiceInstanceContent(PbmServiceImpl.java:87)
          ... 17 common frames omitted
  Caused by: com.vmware.vim.vmomi.client.exception.InvalidSslCertificateException: Invalid SSL certificate (HTTP 526 status code)
  [...]
  [2021-09-20T16:09:28.813+02:00] [ERROR] data-service-pool-688        70007710 100209 200011 c.v.v.client.spbm.impl.VmReplicationGroupPropertyProviderAdapter  Failed to invoke ReplicationManager.queryReplicationGroups()! com.vmware.vsphere.client.spbm.impl.PbmServiceUnableToConnectException: java.util.concurrent.ExecutionException: com.vmware.vim.vmomi.client.exception.InvalidSslCertificateException: Invalid SSL certificate (HTTP 526 status code)
          at com.vmware.vsphere.client.spbm.impl.PbmServiceImpl.getServiceInstanceContent(PbmServiceImpl.java:89)
          at com.vmware.vsphere.client.spbm.impl.PbmServiceImpl.getReplicationManager(PbmServiceImpl.java:111)
          [...]

      该问题是由 vCenter Server 查找服务中的 SSL 信任不匹配引起的。

注意：在采取任何步骤之前，请确保拥有 vCenter Server 的最新备份。

要解决此问题，请使用附件工具带有选项 -t（或 --trustfix）修复
使用该工具修复后，使用以下命令重新启动 vCenter 服务：

# 然后再

service-control --stop --all && service-control --start --all

完美解决！
