Springboot 基于canal实现MySQL和redis的数据一致性

基于canal实现MySQL和redis的数据一致性

安装mysql和redis教程跳过,如未安装,自行百度

1、安装canal

GitHub安装地址:https://bgithub.xyz/alibaba/canal/releases/tag/canal-1.1.7

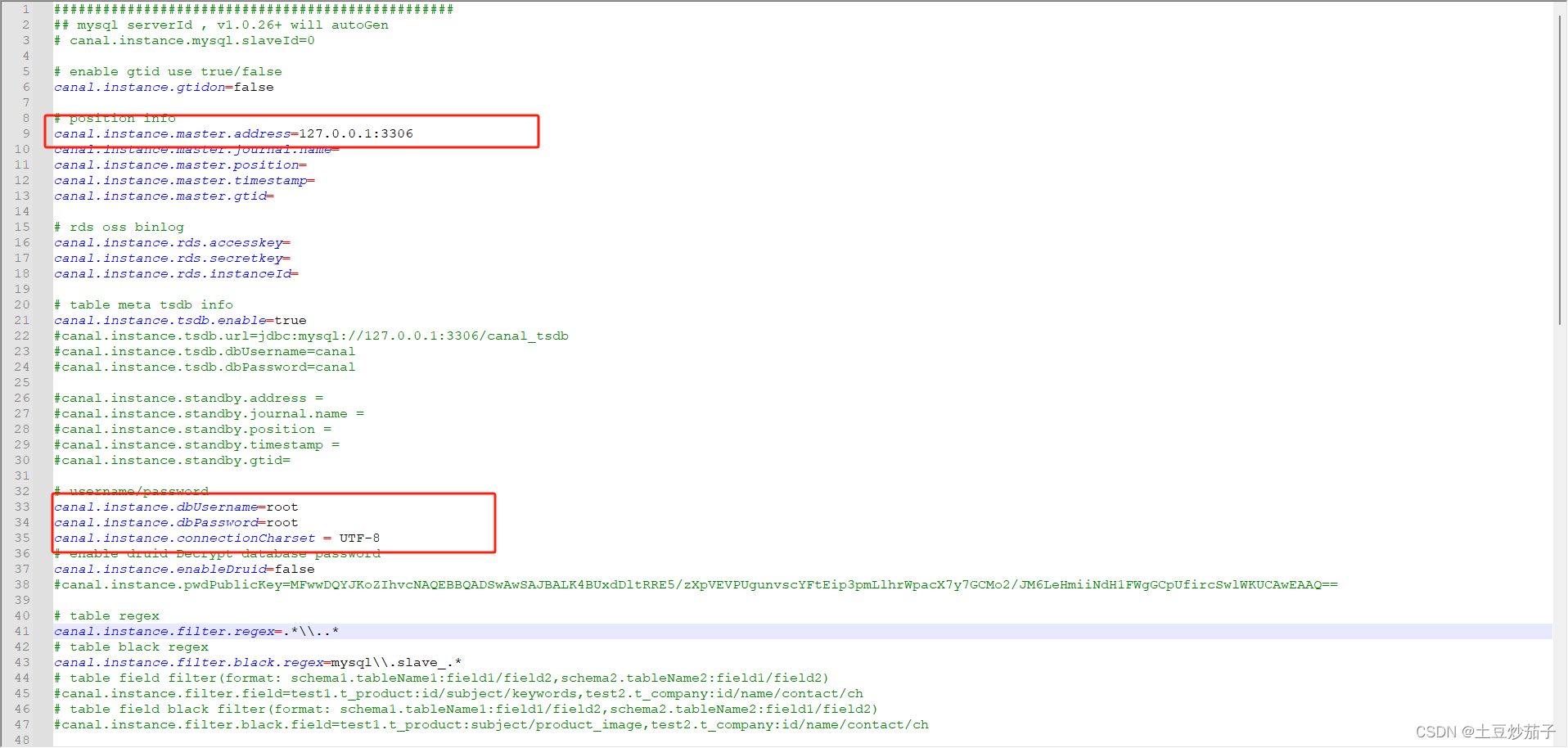

2、修改canal配置文件

配置文件路径canal.deployer-1.1.7confexampleinstance.properties

修改连接MySQL数据库相关配置

在这里插入图片描述

3、查看mysql是否开启bin_log日志

value为ON代表已开启

show variables like '%log_bin%';

在这里插入图片描述
如果未开启,需要修改mysql的my.ini配置

添加开启bin_log日志

添加配置后,重启mysql服务

重新输入sql查看是否开启

show variables like '%log_bin%';

4、mysql数据库配置canal用户

CREATE USER canal IDENTIFIED BY 'canal';
GRANT SELECT,
	REPLICATION SLAVE,
	REPLICATION CLIENT ON *.* TO 'canal' @'%';
GRANT ALL PRIVILEGES ON *.* TO 'canal' @'%';
FLUSH PRIVILEGES;

5、启动canal

双击canal.deployer-1.1.7instartup.bat

如果双击出现闪退,

则需要修改startup.bat启动命令

删除PermSize=128m这段即可

截图中已经删除

在这里插入图片描述

6、代码实现

添加pom依赖

        <dependency>
            <groupId>com.alibaba.otter</groupId>
            <artifactId>canal.client</artifactId>
            <version>1.1.0</version>
        </dependency>

简单代码实现

package com.ljt;

import com.alibaba.fastjson.JSONObject;
import com.alibaba.otter.canal.client.CanalConnector;
import com.alibaba.otter.canal.client.CanalConnectors;
import com.alibaba.otter.canal.protocol.CanalEntry;
import com.alibaba.otter.canal.protocol.Message;
import com.google.protobuf.ByteString;
import com.google.protobuf.InvalidProtocolBufferException;
import lombok.extern.slf4j.Slf4j;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.test.context.junit4.SpringRunner;

import java.net.InetSocketAddress;
import java.util.List;

/**
 * @author ljt
 * @date 2024/1/23
 * @description
 */
@SpringBootTest
@RunWith(SpringRunner.class)
@Slf4j
public class CanalClientTest {
    @Autowired
    private RedisTemplate<String, Object> redisTemplate;

    @Test
    public void test1() {
        //创建链接
        CanalConnector connector = CanalConnectors.newSingleConnector(new InetSocketAddress("127.0.0.1"
                , 11111), "example", "", "");
        //创建链接
        connector.connect();
        int batchSize = 1000;
        while (true) {
            //订阅数据库
//            connector.subscribe("");
            Message message = connector.getWithoutAck(batchSize); // 获取指定数量的数据
            List<CanalEntry.Entry> entries = message.getEntries();
            if (entries.size() <= 0) {
                log.info("当前未监测到数据修改!");
                try {
                    Thread.sleep(5000);
                } catch (InterruptedException e) {
                    throw new RuntimeException(e);
                }
            } else {
                for (CanalEntry.Entry entry : entries) {
                    if (entry.getEntryType() == CanalEntry.EntryType.TRANSACTIONBEGIN || entry.getEntryType() == CanalEntry.EntryType.TRANSACTIONEND) {
                        continue;
                    }
                    ByteString storeValue = entry.getStoreValue();
                    String tableName = entry.getHeader().getTableName();
                    CanalEntry.RowChange rowChange = null;
                    try {
                        rowChange = CanalEntry.RowChange.parseFrom(storeValue);
                    } catch (InvalidProtocolBufferException e) {
                        throw new RuntimeException(e);
                    }
                    CanalEntry.EventType eventType = rowChange.getEventType();
                    List<CanalEntry.RowData> rowDatasList = rowChange.getRowDatasList();
                    System.out.println(String.format("================&gt; binlog[%s:%s] , name[%s,%s] , eventType : %s",
                            entry.getHeader().getLogfileName(), entry.getHeader().getLogfileOffset(),
                            entry.getHeader().getSchemaName(), tableName,
                            eventType));
                    for (CanalEntry.RowData rowData : rowDatasList) {
                        if (eventType == CanalEntry.EventType.DELETE) {
                            redisDel(rowData.getAfterColumnsList(), tableName);
                        } else if (eventType == CanalEntry.EventType.INSERT) {
                            redisSet(rowData.getAfterColumnsList(), tableName);
                        } else {
                            System.out.println("-------&gt; before");
                            printColumn(rowData.getBeforeColumnsList());
                            redisSet(rowData.getAfterColumnsList(), tableName);
                        }
                    }

                }
            }
        }
    }

    private void redisDel(List<CanalEntry.Column> columns, String tableName) {
        JSONObject jsonObject = new JSONObject();
        for (CanalEntry.Column column : columns) {
            System.out.println(column.getName() + " : " + column.getValue() + "    update=" + column.getUpdated());
            jsonObject.put(column.getName(), column.getValue());
        }
        if (columns.size() > 0) {
            redisTemplate.delete(tableName + ":" + columns.get(0).getValue());
        }
    }

    private void redisSet(List<CanalEntry.Column> columns, String tableName) {
        JSONObject jsonObject = new JSONObject();
        for (CanalEntry.Column column : columns) {
            System.out.println(column.getName() + " : " + column.getValue() + "    update=" + column.getUpdated());
            jsonObject.put(column.getName(), column.getValue());
        }
        if (columns.size() > 0) {
            redisTemplate.opsForValue().set(tableName + ":" + columns.get(0).getValue(), jsonObject.toJSONString());
        }
    }

    private void printColumn(List<CanalEntry.Column> columns) {
        for (CanalEntry.Column column : columns) {
            System.out.println(column.getName() + " : " + column.getValue() + "    update=" + column.getUpdated());
        }
    }
}
